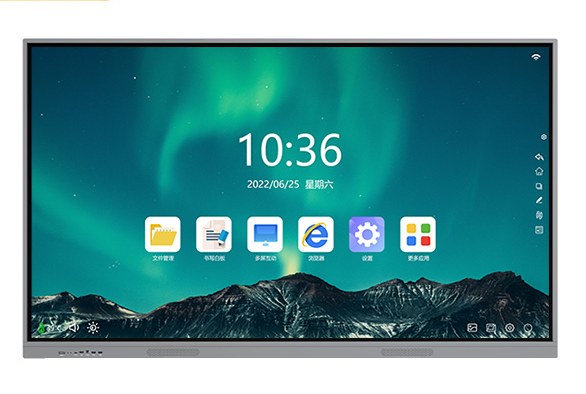

KINGONE 86" Interactive Smart Board - Android 14 – 86" 4K UHD Interactive Display
Smart BoardsReady Stock
Updated Oct 11, 2026
4.9(0 reviews)
In StockNPR 186,000NPR 197,500
You save NPR 11,500
Key specifications
At a glanceProcessor
8-Core A55 @ 1.2GHz
RAM
4 GB
Graphics
Quad-core Mali G52 600MHz
Operating System
Android 14
Quantity:
1
Delivery
Free delivery inside Kathmandu Valley
Warranty
Official product warranty support
Specifications
Display
- Resolution
- 3840 × 2160 (4K UHD)
- Brightness
- 450 nits
- Contrast Ratio
- 3000:1
- Touch Technology
- Infrared Touch Screen
- Response Time
- 8 ms
- Viewing Angle
- 178° horizontal / 178° vertical
- Display Area
- 1895 × 1066 mm
- Refresh Rate
- 60 Hz
- Display Colors
- 16.7 Million
- Display Lifetime
- ~50,000 hours
Processor / Performance
- CPU
- 8-Core A55 @ 1.2GHz
Memory & Storage
- RAM
- 4 GB
- ROM (Storage)
- 32 GB
- Storage Humidity
- 20–80% RH Non-Condensing
- Storage Temperature
- -20°C to 60°C
Operating System / Software
- Operating System
- Android 14
Connectivity
- WiFi
- WiFi 6
- Bluetooth
- 5.0
Ports & Interfaces
- Rear Ports
- HDMI IN ×2, HDMI OUT ×1, USB 2.0 ×1, USB 3.0 ×1, Touch USB (Type-B) ×1, VGA ×1, Audio In ×1, RJ45 ×1, Coax ×1, Line Out (Audio Out) ×1, RS232 ×1, TF Card ×1
- Front Ports
- POWER ×1, USB Type-C ×1, HDMI IN ×1, Touch USB (Type-B) ×1, USB 3.0 ×2
- Multi-User Support
- Yes, simultaneous collaboration
Audio / Sound
- Speakers
- 2 × 20W
- Microphones
- 8-Array Microphones
Camera
- Built-in Camera
- Optional 48MP Module
Physical Dimensions
- VESA Mount
- Standard
- Overall Size
- 1951.3 × 1159.5 × 89.5 mm
- Packing Size
- 205 × 22.5 × 126 cm (Carton Box)
- Diagonal Size
- 86 inches (218 cm)
Weight
- Net Weight
- 54 KG
- Gross Weight
- 75 KG
Graphics
- GPU
- Quad-core Mali G52 600MHz
Network / Wireless
- Wireless Features
- Mobile phone, computer, and tablet wireless screen sharing, WiFi 6, Bluetooth 5.0, Gigabit Ethernet
Battery & Power
- Power Supply
- 100–240V 50/60Hz
- Standby Power
- <0.5W
- Max Power Consumption
- 228W (OPS not included)
Features
- Smart Features
- Whiteboard Writing, Annotation Tools, QR Code Sharing, Handback Eraser
- Standard Accessories
- Remote Control ×1, Power Cable (3m) ×1, HDMI Cable (5m) ×1, Stylus ×1, Wall Mount ×1, English Manual ×1
Other Specifications
- Ideal For
- Smart Classrooms, Boardrooms, Training Halls
- Touch Type
- 20 Points Infrared Touch (40 points max)
- Glass Protection
- AG Tempered Glass
- Working Humidity
- 20–80% RH Non-Condensing
- Optional OPS Module
- Supports Windows, Mac OS, Chrome OS, Linux
- Working Temperature
- 0°C to 40°C
- Minimum Touch Object
- Finger or any opaque object
